SPECIFICATIONS



Audio format: MP3/AAC/APE/OGG/M4A/RA/WAV

Audio output: Support

Bluetooth version: version 5.0

Brand Name: BQCC

   Case size:      245x97    MM

Certification: CE

Color box size: 275x127x97mm

Display Size: 10.25 Inch

Display resolution: 1600x600

Factory set password:     113266

Full box size: 560x315x270mm

Gross weight of the whole box: 12.70KG

High-concerned chemical: None

Host depth: 25MM

Image format: JPEG/PNG/BMP/GIF/TIFF

Installation size: 132x85MM

Item Size: 245X97X25mm

Item Weight: 0.98

Net weight of the whole box: 11.76KG

Number of units per box: 12 units

OSD Language: English

Origin: Mainland China

Placement: In-Dash

Play video warning: Supported

Radio Response Bandwidth: 88.60-95.70MHz

Radio transmitter IC: AB5301B

Resolution: 1600x600

Running memory: 1Gbit DRAM

Screen size: 10.26 inches HD

Single unit weight: 0.98KG

Special Features: Radio Tuner

TF card: Supported

Type: Portable car MP5

USB interface: USB 2.0

Video format: H263/H264/H265/DIVX HD/AVI/FLV/MKV/MPEG/MP4/WMV9/VC/ASF/TS/QT

Voltage: 12 V

Working temperature: -10~60℃

Working voltage: 12~30V

language parameters: English, Chinese, Spanish, Portuguese, Russian, German, French, Polish, Turkish, Arabic, Hebrew, Italian, Czech, Japanese, Korean, Thai

wifi frequency: 2.4G/5G dual-band







Basic parameters

Model: B5303

Type: Portable car MP5

System: Allwinner melis system

Software solution: F133

Radio transmission frequency 88.60/89.20/89.50/89.80/91.50/91.80/93/.00/93.60/93.90/94.50/95.10/95.70MHz

Radio transmission IC: AB5301B

Amplifier IC: CS8571E

Output power: Built-in 1W speaker

Working voltage: 12~30V

Working temperature: -10~60℃

Bluetooth version: Version 5.0 (default name: CarPlay)

Wifi frequency: 2.4G/5G dual-band (automatically switches according to the frequency band of the hotspot connected to the mobile phone, used when connecting to Android AUTO and Apple CARPLAY)



Performance parameters

CPU: F133

Running memory: 1Gbit DRAM

Display resolution: 1600x600

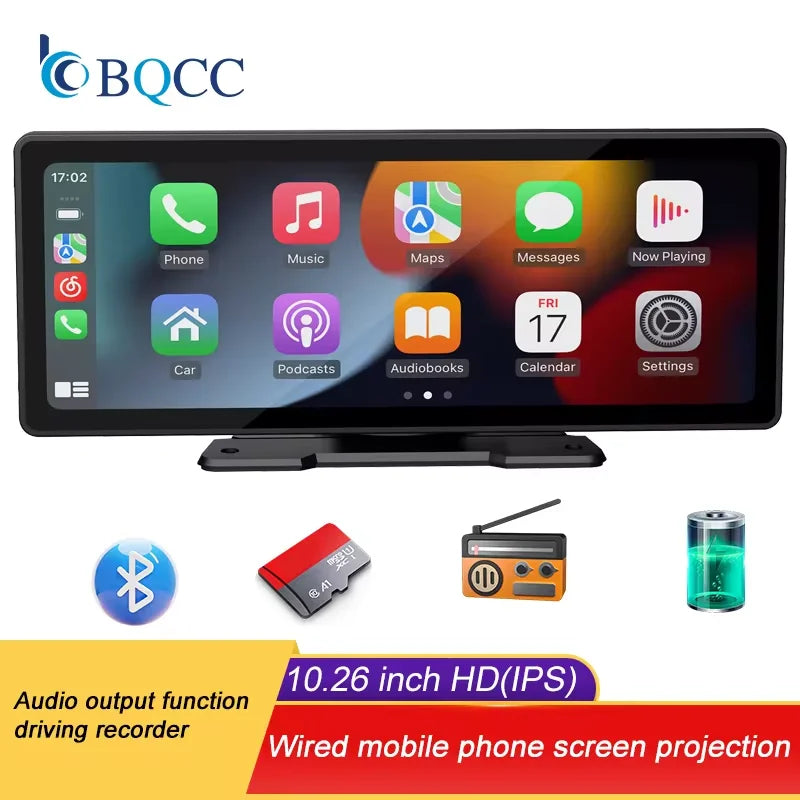

Screen size: 10.26 inches HD (IPS)



Dimensions

Installation size: 132x85MM

Case size: 245x97MM

Device depth: 25MM

Color box size: 275x127x97mm (Color box)



Weight parameters

Weight per box: 0.98KG



Function parameters

Mobile phone interconnection: Support

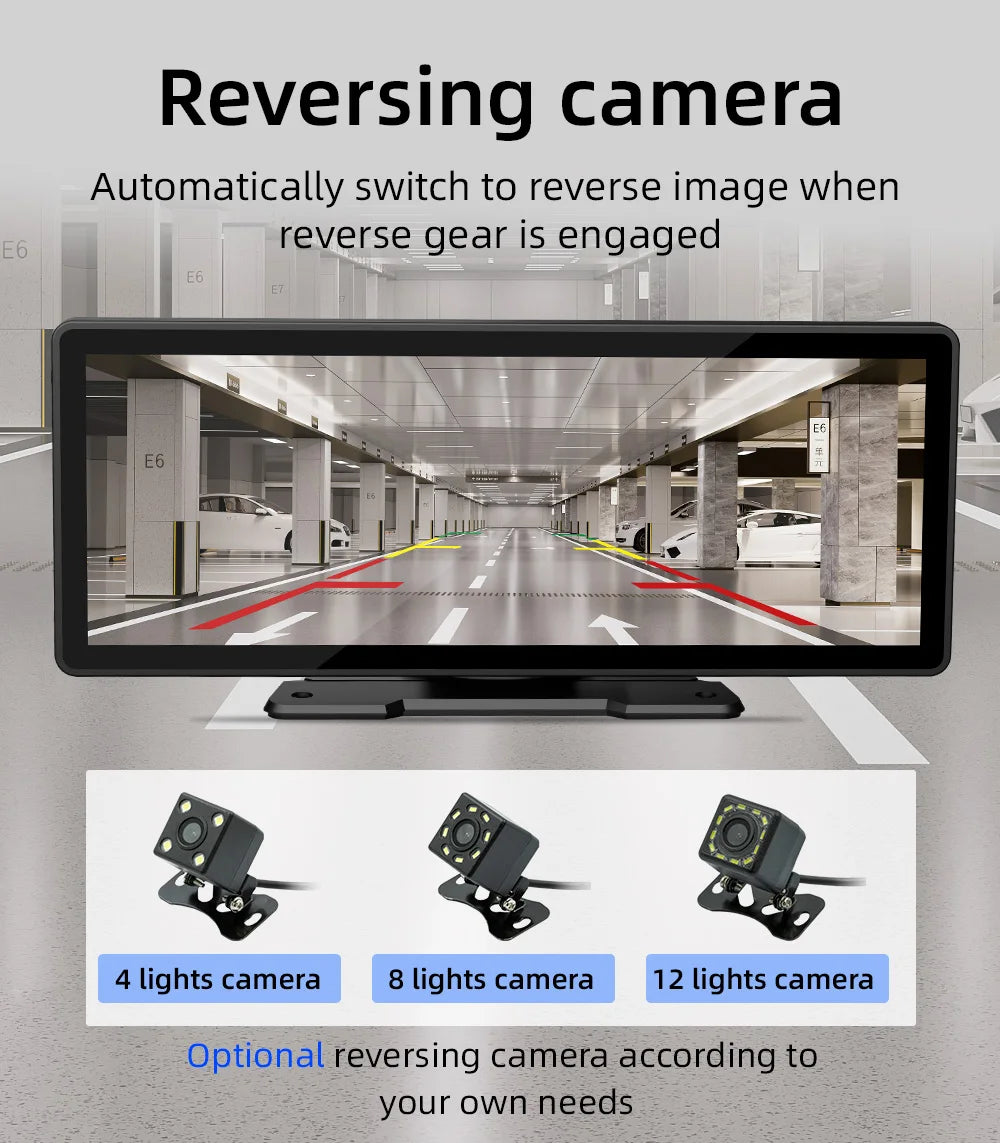

Reversing image: Support

Video playback warning: Support

Driving recorder: Support (optional recorder)

Built-in speaker: Support

USB interface: USB 2.0

TF card: Support



AUX port parameters

Audio output: Support

Reversing video input: Support



Format parameters

Audio format: MP3/AAC/APE/OGG/M4A/RA/WAV

Video format: H263/H264/H265/DIVX HD/AVI/FLV/MKV/MPEG/MP4/WMV9/VC/ASF/TS/QT

Image format: JPEG/PNG/BMP/GIF/TIFF



Language parameters

English, Chinese, Spanish, Portuguese, Russian, German, French, Polish, Turkish, Arabic, Hebrew, Italian, Czech, Japanese, Korean, Thai



Other parameters

Factory setting password: 113266



Basic functions

1. Radio frequency transmission function

2. SD card U disk (audio/video/picture)

3. Bluetooth function

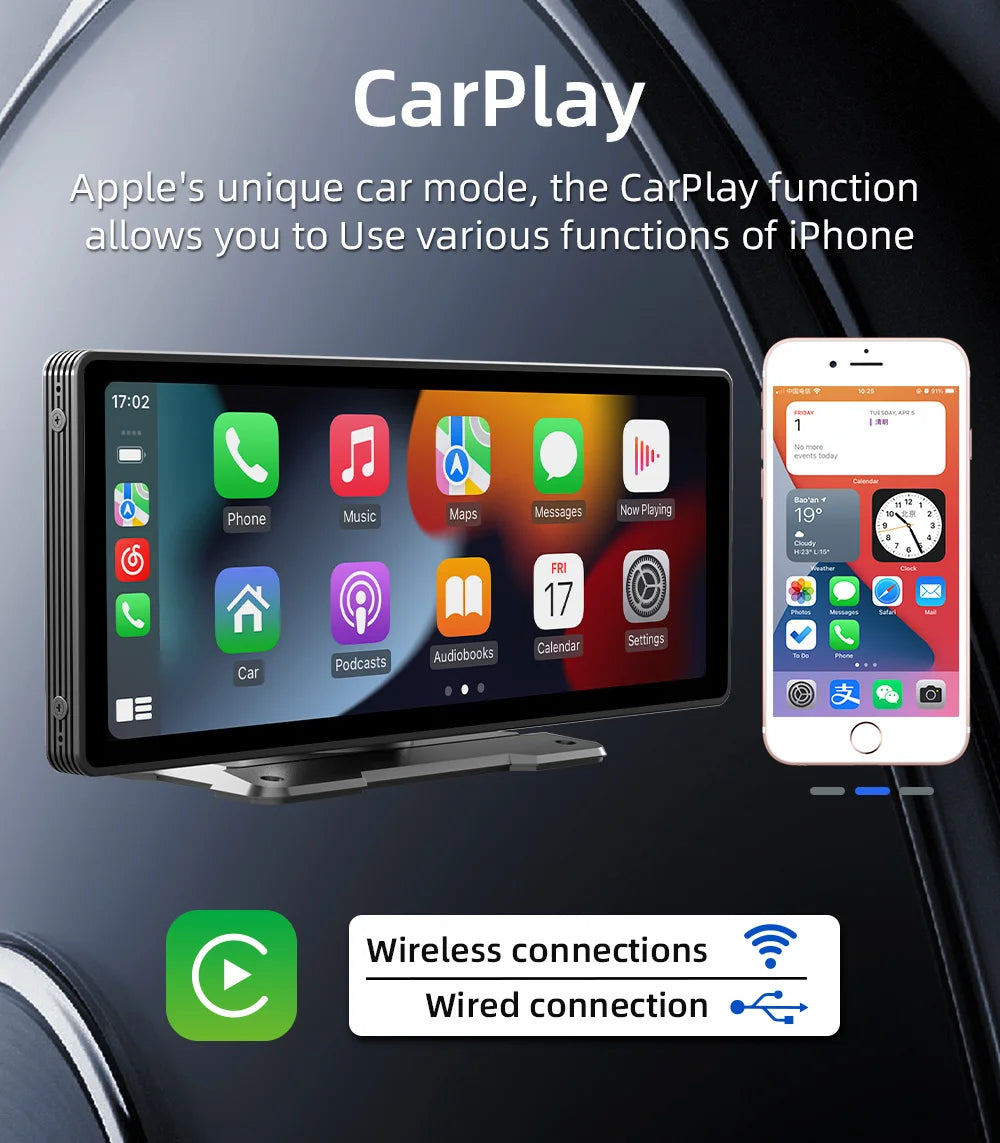

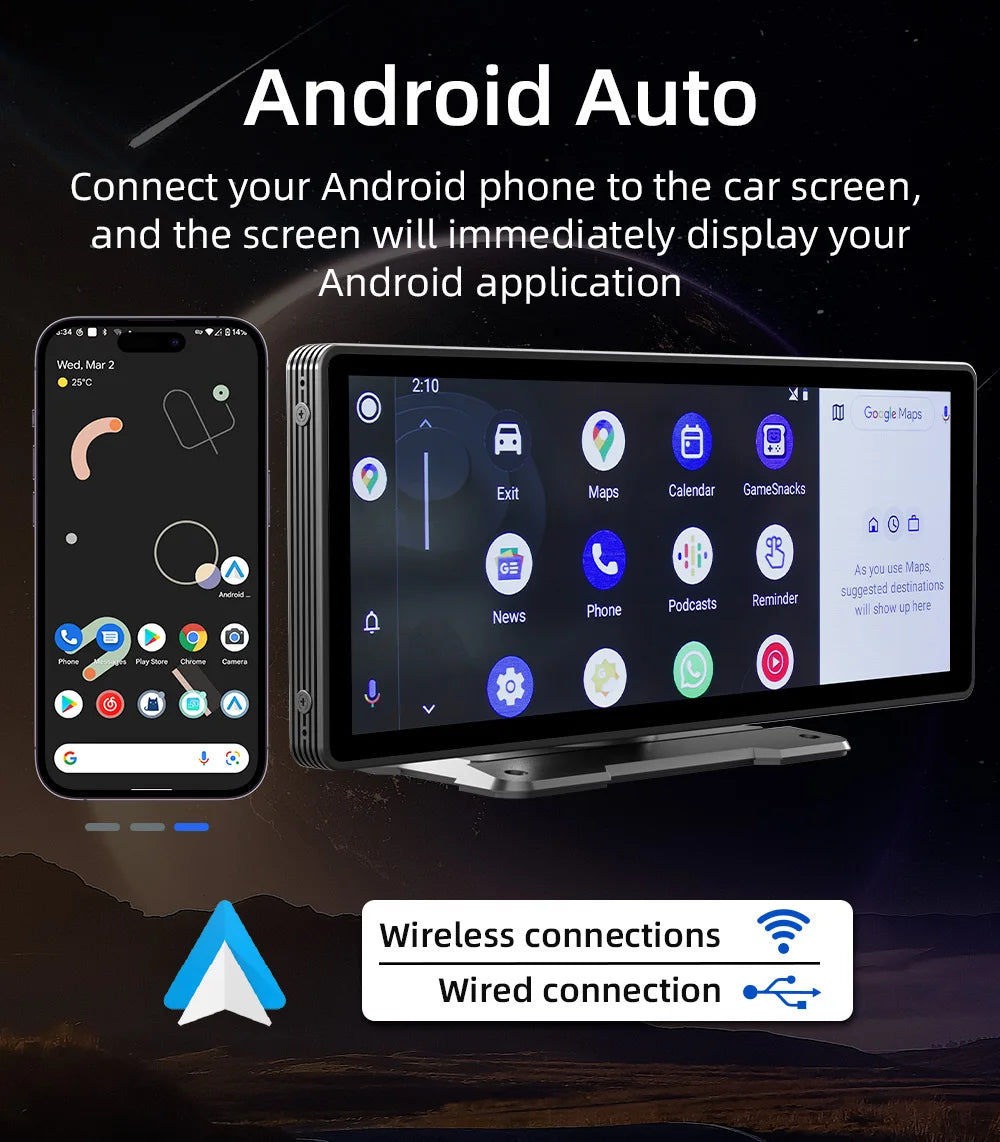

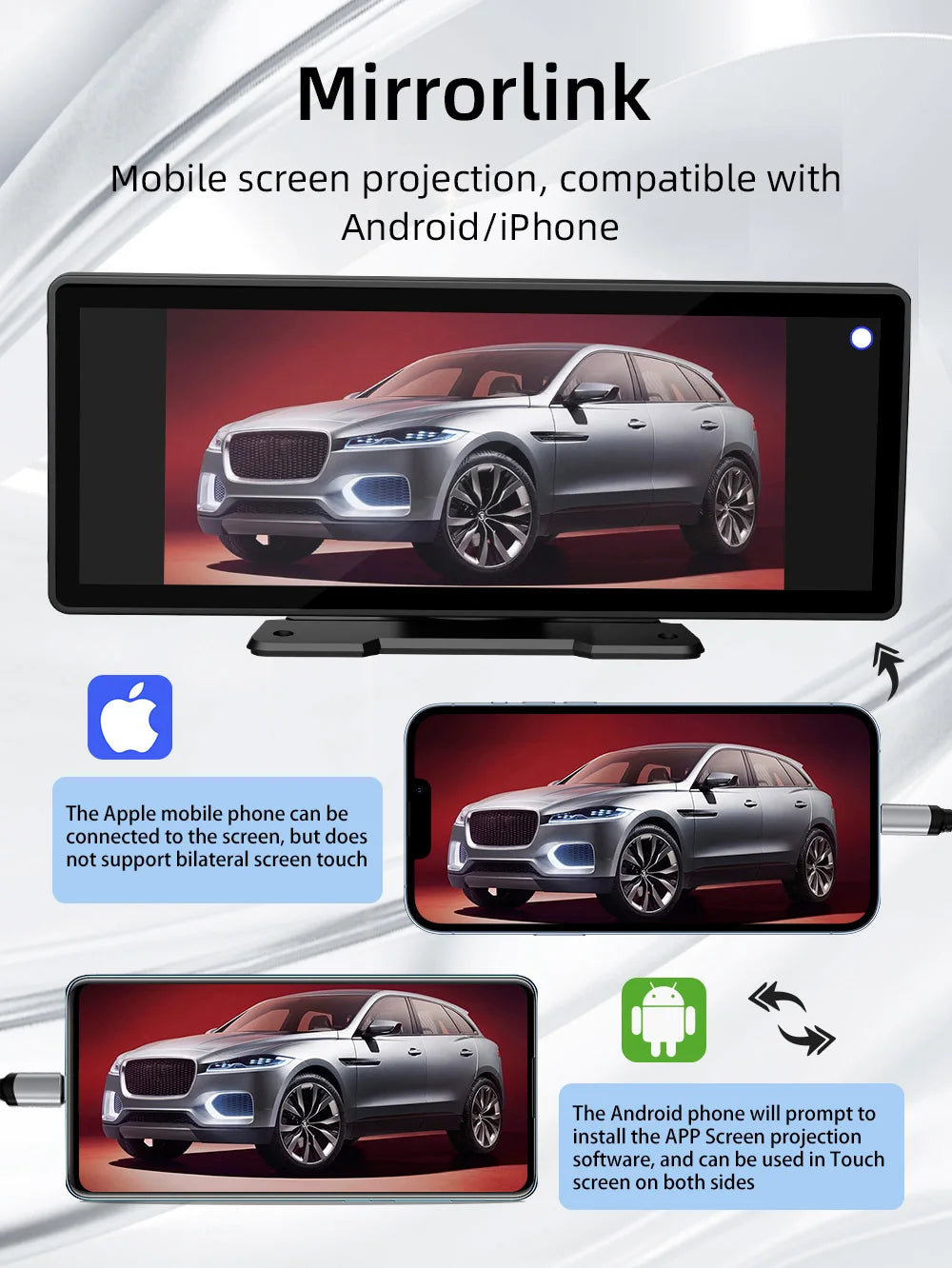

4. Wired mobile phone screen projection, wired and wireless Android AUTO/Apple CarPlay

5. Rear view function (camera optional)

6. Audio output function

7. Driving recorder (recorder optional)
