SPECIFICATIONS



Number of Panels: 1

Flexible Solar Panel: No

Foldable Solar Panel: No

Type: Solar Panel

Module Efficien: 19.1%

Model Number: XT-1200W

Size: 280*420mm

Material: Monocrystalline Silicon

Nominal Capacity: 0.9A

Number of Cells: 6

Max. Power: 25W

Irradiation ratio: 1000 Per square meter

Junction box: 2 USB

cable: 7cm

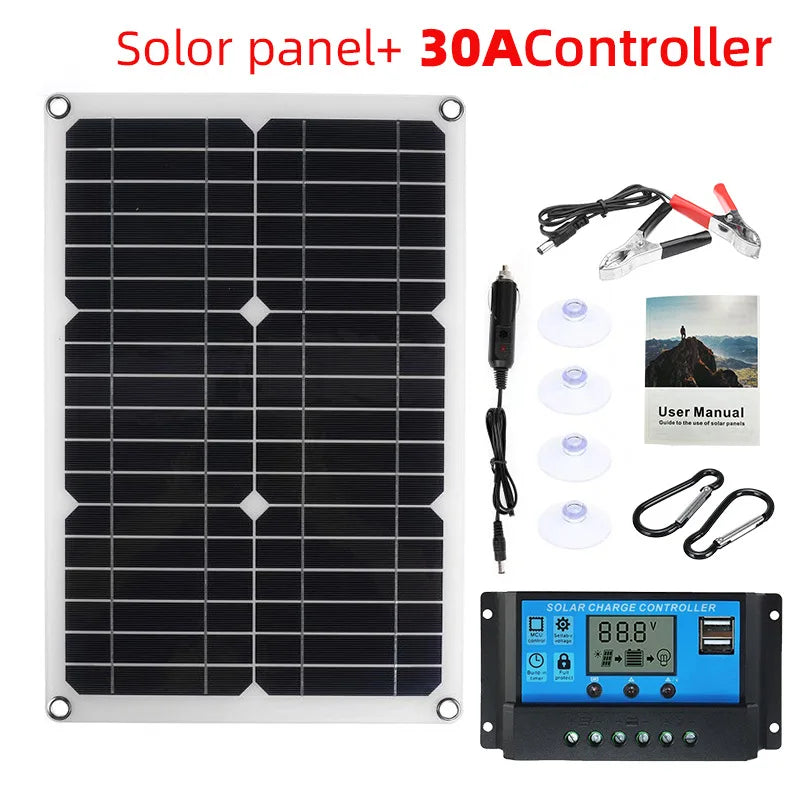

Note: We provide a controller, a solar panel set, and solar panel set with a controller. Customers can choose freely according to their needs.

Can not measure near the window, need sunlight Direct shot.



Controller connection steps

1. Connect the positive and negative poles of the battery , the controller will detect the battery voltage automatically ;

2. Connect the solar panel to the controller;

3. Connect the load as show , don't connect it reversely;

Note: Please connect in strict accordance with the picture show,

otherwise it may cause the controller short circuit;

the disassembly sequence is opposite to the connection sequence.



Specification:

1200W Solar Panel:

Material: Monocrystalline Silicone

Size: 420*280*2.5mm

Voltage: 18V 12V 5V

Rate conversion rate: 19.1%

Number of USB ports: 2

Solar Controller:

Material: PVC

Voltage: 18V automatic identification

Rated charging current: 100A 60A 50A 40A 30A 20A 10A

The highest photovoltaic voltage: 18V system＜25V/24V system＜50V

USB output: 2 USB outputs, maximum 5V/2A

Standby current: <10mA

Working temperature: -35℃~+60℃

Size: 180 * 90 * 45mm
